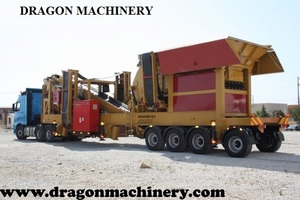

DRAGON 10 NEW GENERATION TURBO CRUSHING SYSTEM
Rotor Size : 1400 X 1000 mm
Crusher type : Primary , Secondary and Tertiary .
Feeding size : 1000 X 1000 mm
There is setting mechanism which leads to easy configuration.
The wearing armor is 16-18% manganese and chromium alloy.
The rotors are specially manufactured and have replaceable wear shields in their wear exposed parts.
Motor power : 185-200 kw
Rotor pallets are 16-18% manganese and chrome alloy. It is also suitable for two-sided use. Longer wear times can be caught on this count.
The setting blocks are 16-18% manganese and chrome alloy. The adjustment blocks have a hydraulic adjustment mechanism for easy adjustment.
The crusher has 2 long type adjustment blocks for thinning. Thanks to these blocks, the thinning curve is very high.
Hardox 500 wear armor is used in the breaker side wall armor.
There are also two lifting pistons for opening and closing the crusher.
The powerful body is unique thanks to its powerful rotor and powerful adjustment blocks.
It is unprecedented with high reduction rates of up to 50 times.
When a material that can not break into the crusher enters, the hydraulic overload prevention device enters the circuit and the crusher elements are protected.
When a material that can not break enters into the crusher , the hydraulic overload prevention system blocks the circuit and the crusher elements are protected.
Main Conveyor Belt System
It is 1000 mm wide and is of palette type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. Side scraper system is available to prevent outflow.
Vibrating Screen Belt System
Screen Size : 1700 X 4800 mm
Vibrating Screen Type : High Capacity
Motor Power : 15 kw
Three different sizes of screening.
Special type bearing suitable for vibration.
Under-Sieve Stock Conveyor Belt System

It is 1000 mm wide and foldable type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. A side scraper system is available to prevent spillage of the final product into the stock area during crushing. Foldable with hydraulic piston for easy assembly and disassembly of the system.
