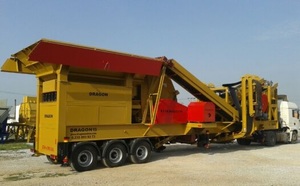

Crushing and Screening Plant Closed Circuit Type Dragon 15 - Pietermaritzburg
Wednesday, 19 April 2017
Item details
City:
Pietermaritzburg, KwaZulu-Natal
Offer type:
Sell
Price:
R 1
Item description
Dragon 15 wheel suspension
Total Twelve(12) Blocking Legs
Airbrakes, running lights, and mud flaps
Fixed walkway on both sides of cone with hand rails and kick plate
Walkways and ladders both sides of screen & front cross over
Access ladder to chassis
Hydraulic System and Hydraulic Legs
Mobile Chassis 3 axle chassis
Hydraulic Levelling System
Six (6) hydraulic levelling jack system
Feeder Module
Hopper and Feeder
Hopper: 15 m3
Vibrator System
Feeder Grizzly System
Feeder Size : 1150x 4000mm 2 nos. Vibrator adjusttable throw amplitude italvibras or Oli brand
Turbo Impact Crusher
Primary, Secondary and Tertiary functions one machine.
Rotor Size : Turbo Impact Crusher 1000x1300mm
Strong Body, Strong rotor, strong setting blocks
185 kW Motor , sheaves, v-belts
We furnish the liners of Dragon Turbo Crushers by Hardox 500.
Rotor pallets 16-18 % manganese, chromium
Setting block Liners 16-18 % manganese, chromium
Easy adjustment mechanism
Improved latest technology Crushing system
Main Feed Belt
1000 mm Conveyor belt Motor : 7,5 kW
Dragon Screen High Capacity Type
Screen Size : 1700x 4800 mm 3 Deck High Capacity Screen Motor : 18,5 kW
Stock Conveyors 3 Unit
2 Unit 600 mm Conveyor belt Motor : 4 kW
Main Stock Conveyor Belt
1 Unit 1000 mm Conveyor belt Motor : 5,5 kW
Feedback Conveyor 1.
600 Conveyor belt Motor : 2.2 Kw
Feedback Conveyor 2.
600 Conveyor belt Motor : 5,5 kW
Hydraulic block adjustment, Easy To Setup, Primary Block, Secondary Block
Control Board : Siemens Brand Electrical Equipment
Total Twelve(12) Blocking Legs
Airbrakes, running lights, and mud flaps
Fixed walkway on both sides of cone with hand rails and kick plate
Walkways and ladders both sides of screen & front cross over
Access ladder to chassis
Hydraulic System and Hydraulic Legs
Mobile Chassis 3 axle chassis
Hydraulic Levelling System
Six (6) hydraulic levelling jack system
Feeder Module
Hopper and Feeder
Hopper: 15 m3
Vibrator System
Feeder Grizzly System
Feeder Size : 1150x 4000mm 2 nos. Vibrator adjusttable throw amplitude italvibras or Oli brand
Turbo Impact Crusher
Primary, Secondary and Tertiary functions one machine.
Rotor Size : Turbo Impact Crusher 1000x1300mm
Strong Body, Strong rotor, strong setting blocks
185 kW Motor , sheaves, v-belts
We furnish the liners of Dragon Turbo Crushers by Hardox 500.
Rotor pallets 16-18 % manganese, chromium
Setting block Liners 16-18 % manganese, chromium
Easy adjustment mechanism
Improved latest technology Crushing system
Main Feed Belt
1000 mm Conveyor belt Motor : 7,5 kW
Dragon Screen High Capacity Type
Screen Size : 1700x 4800 mm 3 Deck High Capacity Screen Motor : 18,5 kW
Stock Conveyors 3 Unit
2 Unit 600 mm Conveyor belt Motor : 4 kW
Main Stock Conveyor Belt
1 Unit 1000 mm Conveyor belt Motor : 5,5 kW
Feedback Conveyor 1.
600 Conveyor belt Motor : 2.2 Kw
Feedback Conveyor 2.
600 Conveyor belt Motor : 5,5 kW
Hydraulic block adjustment, Easy To Setup, Primary Block, Secondary Block
Control Board : Siemens Brand Electrical Equipment
